PRODUCT HIGHLIGHTS
APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
FEATURE
· MPO-LC connectors;
· 8Fibers, 12Fibers or 24Fibers version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard /UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
OVERVIEW

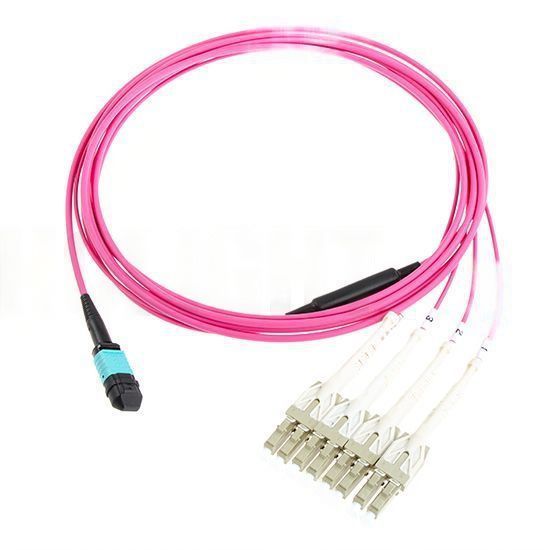

High Quality and Cost-effective 50/125μm OM4 12Fibers Optic Cable
HOLIGHT also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
| Connector | MPO to LC | Jacket OD | 3.0mm |
| Fiber Mode | 50/125μm OM4 | Jacket Color | Magenta/Pink/Purple |
| Polish | UPC | Wavelength | 850nm |
| Fiber Type | 8Fibers | Jacket Material | LSZH / PVC / OFNP |
| Insertion loss(MPO) | ≤0.35dB | Insertion loss(LC) | ≤0.2 dB |
| Return loss | ≥30dB | Storage temperature | -45~85°C |
| Operating temperature | -40~75°C |
Quality Certification
Quality and standards are the foundation of HOLIGHT. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
HOLIGHT has passed many quality system verification, like CE, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
Our Test Assured Program Take a look at our fiber patch cable test program and see what truly sets us apart
