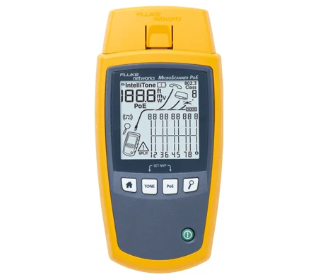

MicroScanner² Cable Verifier

PRODUCT HIGHLIGHTS

The technician’s tool for installing and troubleshooting Ethernet devices.

MicroScanner PoE Capabilities:

  • Quickly determine if a problem is caused by a bad or unconnected cable, insufficient power, or a Powered Device (PD).
  • Information for the Network Engineer to investigate potential switch configuration or malfunctions.
  • PoE  Switch Verification – Determine if a switch port can provide enough power by reporting PoE class (0-8).
  • Powered Pairs – Graphically identifies powered pairs. Including Dual Signature where the switch port delivers power on 2 or 4 pairs (802.3bt or PoE ++)
  • Active Switch Detection – Determine if a cable is connected to a switch port and port speed up to 10G
  • Cable Testing – Identify any shorted, open, or crossed wires at both ends, length of each pair, and send tones to find cables.
  • Validate and troubleshoot your Industrial Ethernet copper cabling
  • PoE Injector verification – Display injector voltage level

OVERVIEW

Streamlined verification testing
The MicroScannerTM Cable Verifier series simplifies the testing of voice, data, and video cable. It starts by taking results from what were four different test modes and displaying them all at once – graphical wire map, pair lengths, distance to fault, cable ID, and far-end device.  What’s more, it supports virtually any type of low-voltage cable testing with no need for awkward adapters.  The end result is reduced test time and technician error.  That makes high-quality installations more efficient than ever.

Rule out service problems fast
Today’s communications technicians have a lot more problems to deal with than just the cabling.  They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem.  The MicroScanner Cable Verifier series is equipped to answer the question to reduce time troubleshooting. Is there telephone voltage?  What’s the polarity?  Is there an Ethernet switch at the far end?  Is PoE available?  If PoE is available, is it enough to run my device? The MicroScanner Series acknowledges this, giving technicians the vision to verify today’s most common voice, data, and video services. That means faster, more comprehensive troubleshooting.”
