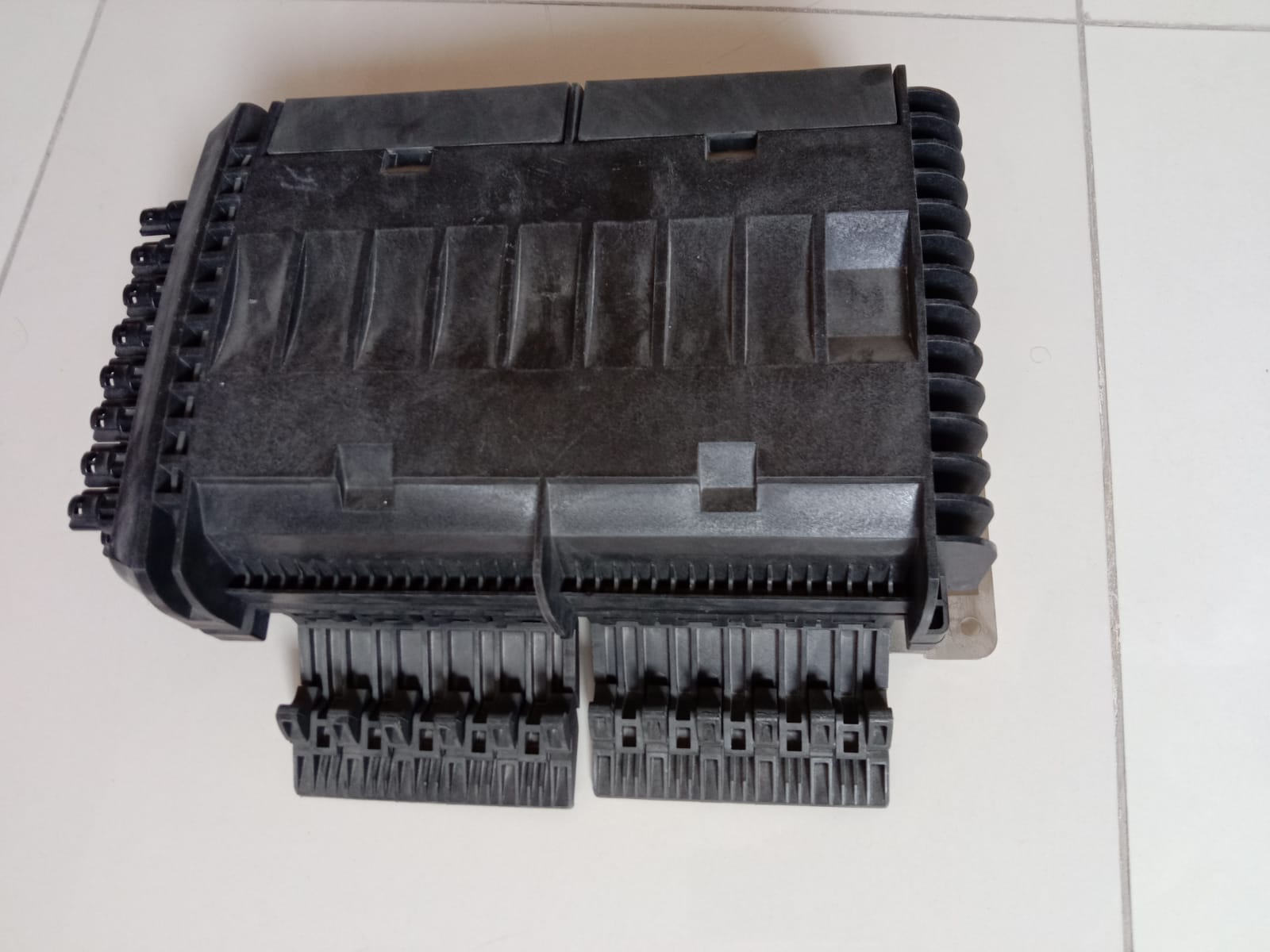

Fiber Optic Cable Joint Termination Box

PRODUCT HIGHLIGHTS

It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.

The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

OVERVIEW

Dimension(mm)

380×245×130

Max. capacity(Single fiber)

16

Weight(kg)

4.5~5

Sealing type

Mechanical

Cable ports

1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
16 output cable ports for cable diameter less than 4mm.

Single splice tray capacity(Single fiber)

16

Splice tray quantity

2pcs
