PRODUCT HIGHLIGHTS
Fiber: 2-288 fibers
Loose tube gel-filled
Armor: Corrugated steel tape
Central Strength Member: FRP or Steel Wire
Outer Jacket:
Black UV-and moisture-resistant polyethylene(PE)
Loose tube gel-filled
Armor: Corrugated steel tape
Central Strength Member: FRP or Steel Wire
Outer Jacket:
Black UV-and moisture-resistant polyethylene(PE)
Feature: Loose tube gel-filled construction for superior fiber protection. Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.
UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, underground conduits.
Applications
Backbones and Access.
Installed in ducts, underground conduits.
OVERVIEW
Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Allowable Tensile Load (N/100mm) | Allowable Crush Resistance (N/100mm) | ||
Short Term | Long Term | Short Term | Long Term | |||
2-30 | 9.7 | 96 | 1500 | 600 | 1800 | 800 |
32-48 | 10.7 | 111 | 1500 | 600 | 1800 | 800 |
50-72 | 11.6 | 136 | 2000 | 600 | 1800 | 800 |
74-96 | 13.0 | 166 | 2000 | 600 | 1800 | 800 |
98-144 | 15.1 | 288 | 2000 | 600 | 1800 | 800 |

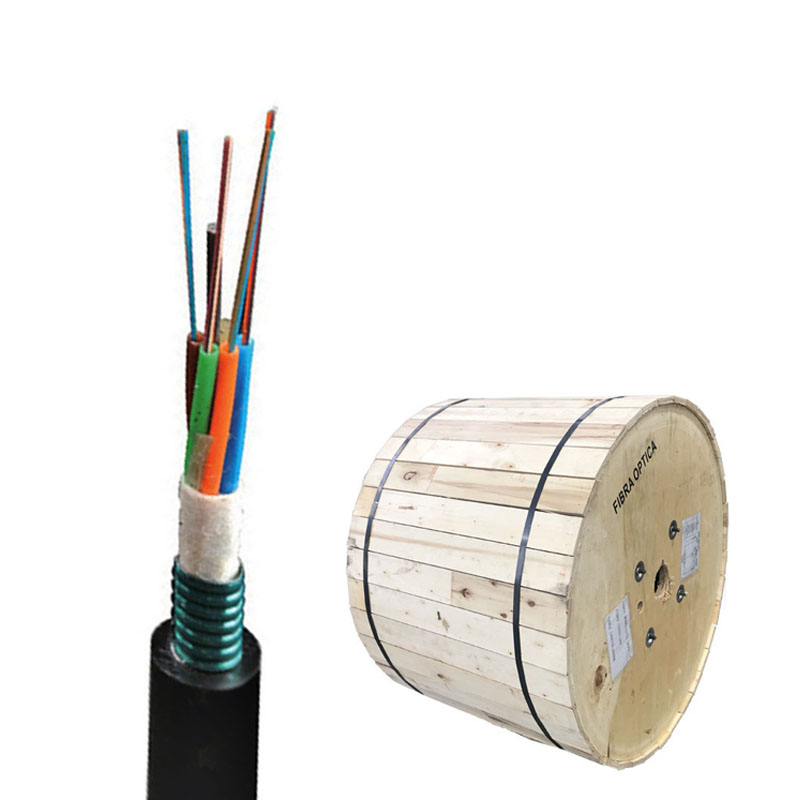

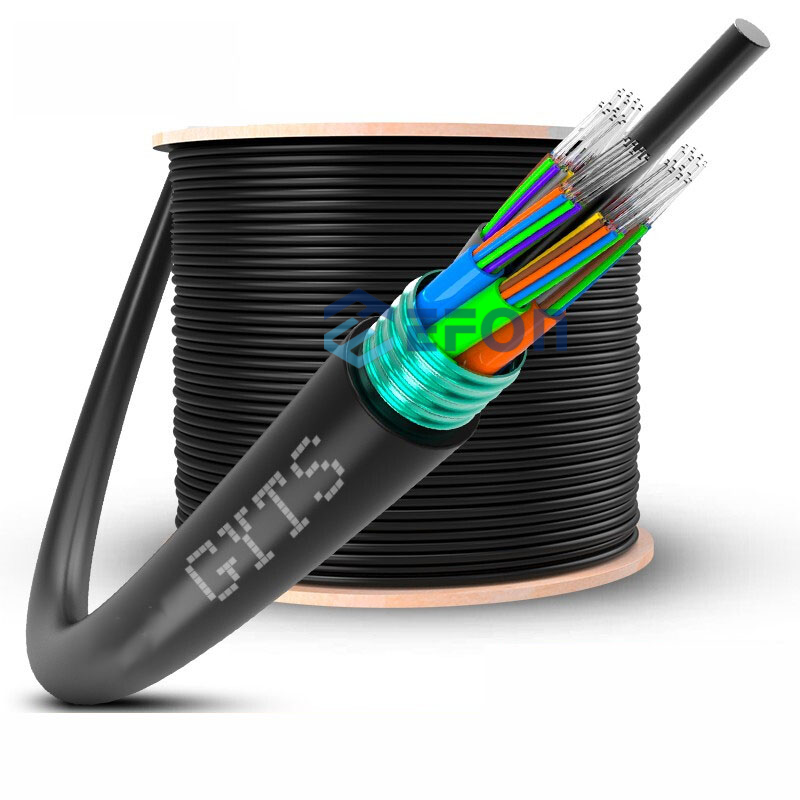

Armored Loose Tube Single Jacket/SingleArmor fiber optic cable with fibers placed in loose buffer tube stranded around central
strength member. The cable core is protected with jelly to prevent water intrusion and migration, with a corrugated steel tape
armor which provides rigid protection, rodent resistance, and cover with a black Polyethylene out jacket.
strength member. The cable core is protected with jelly to prevent water intrusion and migration, with a corrugated steel tape
armor which provides rigid protection, rodent resistance, and cover with a black Polyethylene out jacket.
